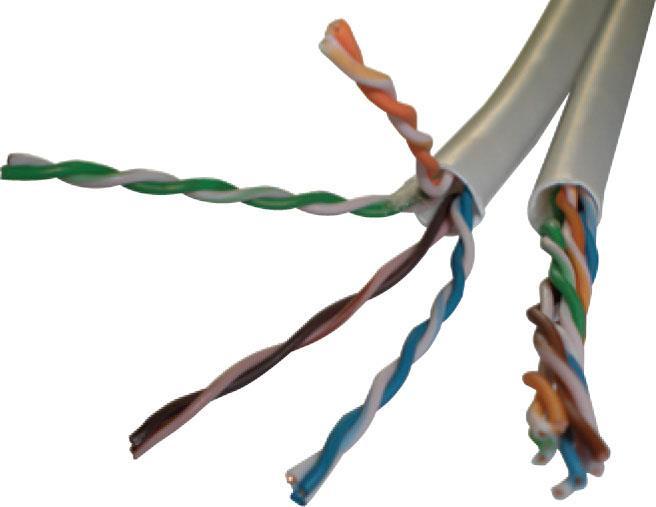

Excel Category 5e Unscreened Dual LSOH Cables are manufactured and tested to the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards for enhanced performance Category 5 cables. Each twin cable consists of two sets of 8 colour coded polyethylene insulated conductors. These are twisted together to form two sets of 4 pairs with varying lay lengths.

  • Features

  • Twin Cable

  • Supports Gigabit Ethernet

  • LSOH outer sheath

  • Fast feed box

  • Sequential metre markings

  • Category:

  • 5E

  • Total number of cores:

  • 8

  • Stranding element:

  • Pairs

  • Outer sheath material:

  • Polyolefin

  • Low smoke (acc. EN 61034-2):

  • yes

  • Halogen free (acc. EN 60754-1/2):

  • yes

  • Overall screening:

  • None

  • Conductor screening:

  • None

  • Outer sheath colour:

  • White

  • Conductor category:

  • Class 1 = solid

  • AWG-size:

  • 24

  • Number of strands:

  • 1

  • Conductor material:

  • Cu, bare

  • Core insulation:

  • PE

  • Core identification:

  • Colour

  • Flame retardant:

  • In accordance with EN 60332-1-2

  • NVP value:

  • 70 %

  • Operating Temperature Range:

  • -10...75 °C
