Description

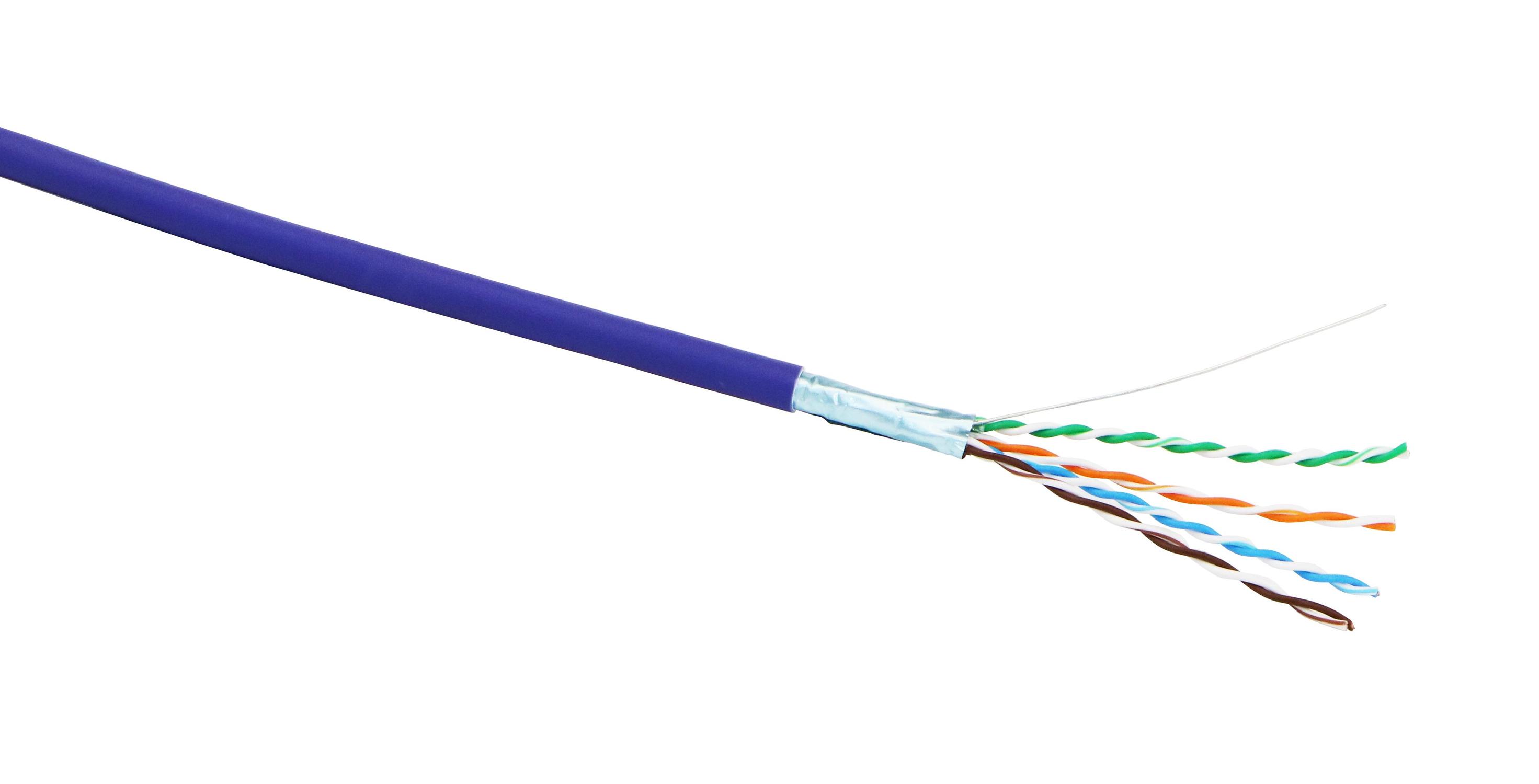

  • Excel Category 5e Screened LSOH Cables are manufactured and tested to the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards for enhanced performance Category 5 cables. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are wrapped in an aluminium mylar tape screen with a solid 24AWG drain wire and jacketed in a heat resistant rated material.

Features

  • Foil Tape Screen
  • Choice of Colour
  • Supports Gigabit Ethernet
  • LSOH outer sheath
  • Fast feed box
  • Sequential metre markings (305-0)

Features

Category:

5E

Total number of cores:

8

Stranding element:

Pairs

Outer sheath material:

Polyolefin

Low smoke (acc. EN 61034-2):

yes

Halogen free (acc. EN 60754-1/2):

yes

Overall screening:

Foil

Conductor screening:

None

Outer sheath colour:

Violet

Conductor category:

Class 1 = solid

AWG-size:

24

Number of strands:

1

Conductor material:

Cu, bare

Core insulation:

PE

Core identification:

Colour

Flame retardant:

In accordance with EN 60332-1-2

Outer diameter approx.:

6.4 mm

NVP value:

70 %

Operating Temperature Range:

-10...60 °C

Installation Temperature Range:

0...50 °C
