Description

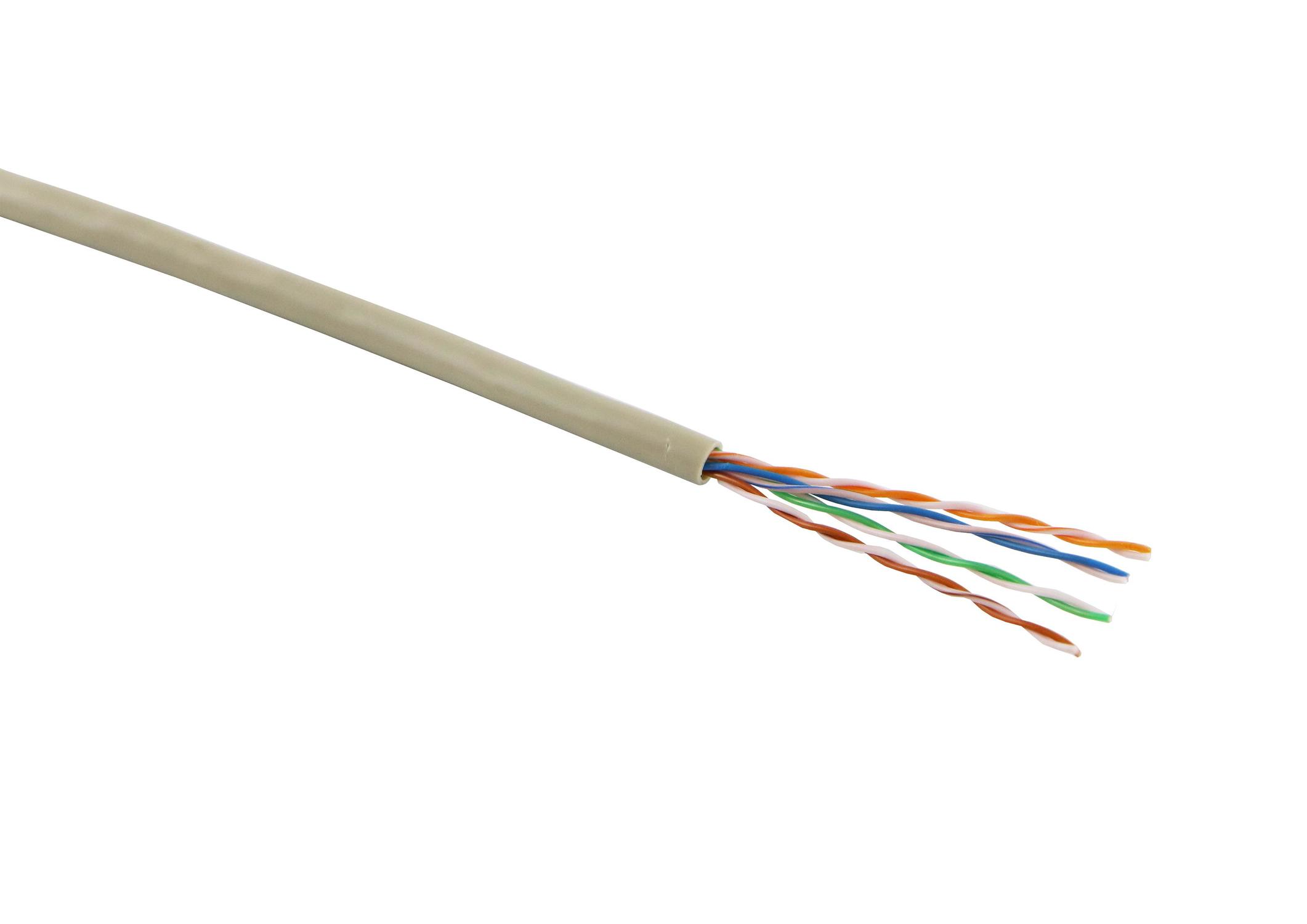

Excel Category 5e Unscreened PVC Cables are manufactured and tested to the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards for enhanced performance Category 5 cables. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths.

Features

  • Supports Gigabit Ethernet
  • Choice of reel size
  • Fast feed box
  • Sequential metre markings (305-0)

Features

Category:

5E

Total number of cores:

8

Stranding element:

Pairs

Outer sheath material:

PVC

Low smoke (acc. EN 61034-2):

no

Halogen free (acc. EN 60754-1/2):

no

Overall screening:

None

Conductor screening:

None

Outer sheath colour:

Grey

Conductor category:

Class 1 = solid

AWG-size:

24

Number of strands:

1

Conductor material:

Cu, bare

Core insulation:

PE

Core identification:

Colour

Flame retardant:

In accordance with EN 60332-1-2

Outer diameter approx.:

5.2 mm

NVP value:

70 %

Operating Temperature Range:

-10...75 °C
