Description

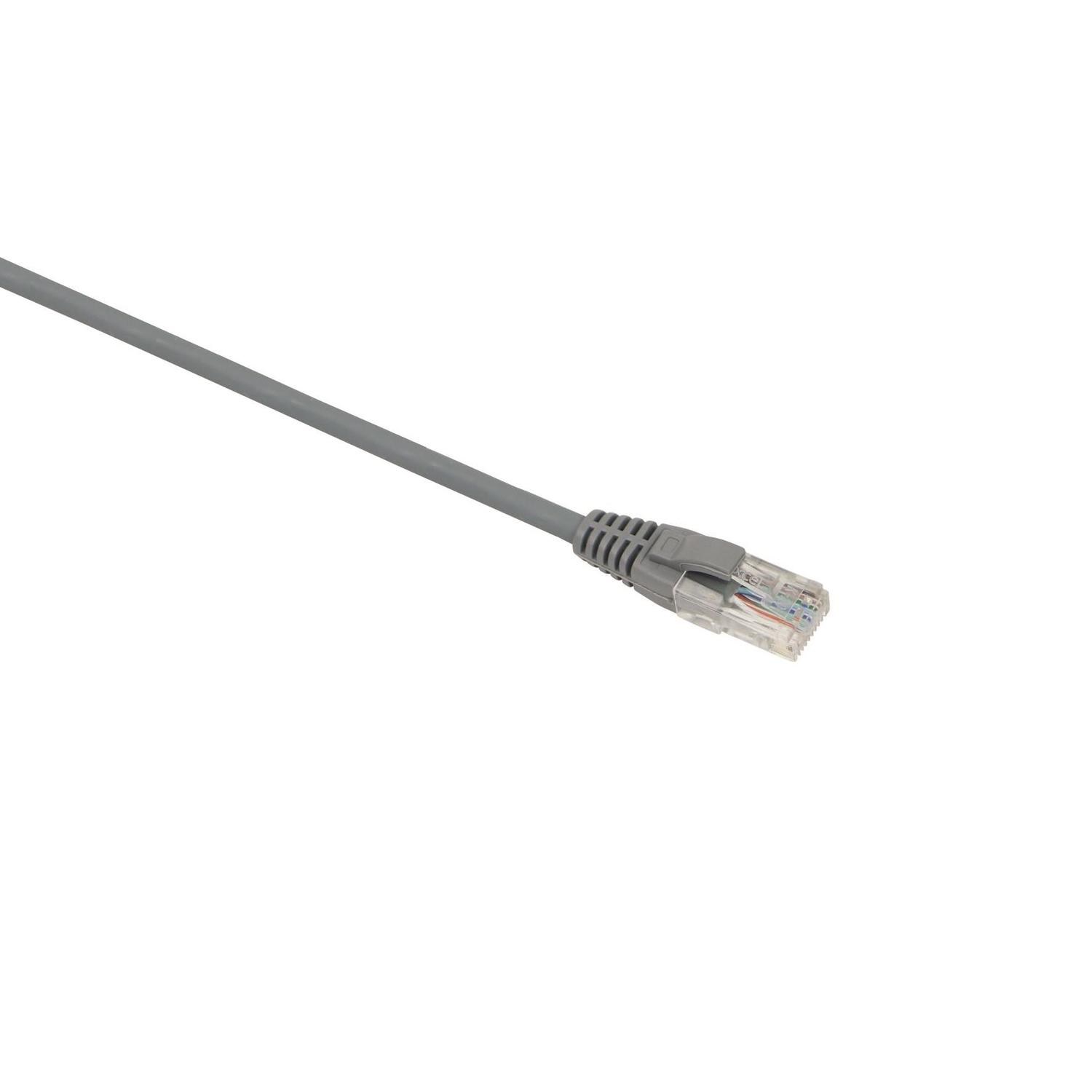

Excel Category 5e U/UTP Patch Leads are manufactured, tested, and independently verified to the ISO11801 and EN 50173 Category 5 and EIA/TIA standards for enhanced performance. Each cable consists of 8 colour coded stranded 24AWG conductors twisted together to form 4 pairs with varying lay lengths. Cables are fitted with plastic strain relief boots, for applications that may require continuous patching or a degree of stress relief applied.

Features

  • Category 5e Compliant
  • Independently verified
  • Supports Gigabit Ethernet
  • Choice of Colours
  • T568B wiring
  • Blade style 'slimline' moulded strain relief boot with clip protector
  • Individually bagged
  • LSOH outer sheath

Features

Category:

5E

Cable type:

U/UTP

Strain relief boot:

Moulded-on

Outer sheath colour:

Grey

Length:

0.2 m

Halogen free:

yes

Type of connector connection 1:

RJ45 8(8)

Type of connector connection 2:

RJ45 8(8)

AWG-size:

24

Pin assignment:

1:1
