LCDP1003
- Software for NVR accepts Video Devices up to 200
- Free License: 1 (1 channels for ACTi and 1 channel for third-party video device)
- Event trigger, response and notification

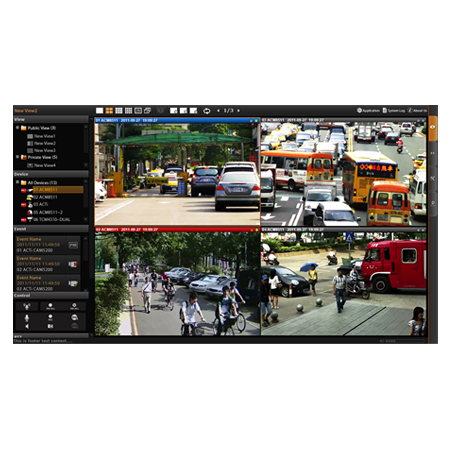

- Workstation, Web Client, Mobile Client
- Video export formats: RAW, AVI, EXE
- Location-based management with e-Map
- Non-ACTi camera support via licensed Camera Device Pack
Full specifications
Device
| Product Type | Software NVR |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum Number of Video Devices | 200 |
| Maximum Number of POS devices | 100 (requires additional license) |
| Maximum Number of Access Control and Network I/O devices | 100 (requires additional license) |
| Maximum Number of Clients | Local: 1, Remote: Unlimited, (recommended up to 5) |
Hardware
| Recommended Graphics Card | GTX 1050 Ti or better |
License
| License required | Yes |
| Free License | 1 (1 channels for ACTi and 1 channel for third-party video device) |
Live View
| Display Layout Mode | 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, Custom |
| Fisheye Dewarping | Yes |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full |
| Instant Playback | Instant Playback in live view window |
| Embedded websites in Live View | Display and connect to pre-configured embedded website |
Map
| e-Map | Yes |
| Google Map | Yes |
| Layout | Area maps with camera icons, small live view windows, hyperlinked |
| Setup | e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O, Car Park |
| PTZ Mode | Mouse PTZ mode to control e-Map video streams |
PTZ
| PTZ Control | PTZ Control, Speed Control, 32 preset points |
| Joystick | USB based joystick supported |
Video
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Hardware Accelerated Decoding | H.264, H.265 |
| Built-in Analytics | Visual Tracking |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP Client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, iSCSi, LDAP (client) |
Recording
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Maximum Recording Throughput | 100 channels at 5MP/15fps |
Search & Playback
| Playback Control | Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame, pause, stop |
| Synchronized Playback | 64 channels |
| Recording Search | Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download |
| Smart Search | Smart search of recorded video by Motion Detection and Tamper |
| Video Export | RAW, AVI, EXE |
Event
| Video Push | Support Video Push from ACTi Mobile Client devices |
| Event Trigger | [NVR]: Disk full, Disk not found, Disk is available, Schedule service start and stop, Video Push start and stop, CPU limit exceeded. [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss, Video Recovery, Network loss and recovery. [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status, Car park status |
| Event Response | Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification |
Redundancy Server
| Redundancy Service | Yes, N-to-N, N+1 (With limited functions when NVR 3 server acts as Redundancy server) |
System
| Permission control | Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period |
| Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016 |
| Server Operating System | Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016 |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Event/time based search and playback, iPad, Android device |
| Language | Multi-Language |
Integration
| Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S (officially listed as ONVIF conformant at www.onvif.org) |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Third-party Integration | Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license) |
Interface
| Local Access | Monitor, Joystick, Keyboard & mouse |
General
| Remote Access | Workstation, Web Client, Mobile Client |
